Motor Tahan Karat TEFC
Keluarga pemacu keluli tahan karat:
(1) Motor elektrik keluli tahan karat: saiz metrik IEC, saiz Nema inci
(2) Motor gear keluli tahan karat: motor gear heliks sepaksi, motor gear cacing sudut kanan, motor gear heliks serong sudut
(3) Kotak gear cacing keluli tahan karat: Saiz IEC dan saiz inci, jenis permukaan licin NMRV, NMRV dengan jenis rusuk pelesapan haba, jenis bulat VF
Parameter Utama Motor Tahan Karat TEFC:
Kuasa : 0.18-7.5KW
Voltan: 208-230/460V 50HZ 60Hz
Bingkai:B3/B5/B14/B34/B35
Gred perlindungan: IP66
Kelas penebat: Kelas F
Standard: IEC, yang tahap kecekapannya setanding dengan jabatan tenaga Eropah
Ia telah lulus pensijilan CE, iso9001:2000
IEC MOTOR STAINLESSTEEL(B3)
| Nombor asas | 63 | 71 | 80 | 90 | 100 | 112 | 132 |
| Kuasa(kw) | 0.18 | 0.25,0.37 | 0.55,0.75 | 1.1,1.5 | 2.2,3 | 4 | 5.5,7.5 |
| melekap | B3,B5,B14,B34,B35 | ||||||
1. Pilihan tiub gred makanan-untuk aplikasi di mana kabel berada dalam zon makanan
2. Kabel tunggal untuk meningkatkan kebolehpercayaan, pembersihan yang lebih pantas dan lebih sedikit tempat untuk menampung patogen
3. Kaedah penandaan yang bersih menghapuskan kuman patogen
4. Kedap aci IP69K yang bersih, termasuk rawatan aci khas untuk jangka hayat
TEFC SS Motor
TENV SS Motor
SS Motor dengan Kaki
Motor Gear Heliks SS
Motor Gear Serong SS
Pengurangan Cacing SS
|
kuasa |
1/4HP~30HP |
|
Saiz Bingkai |
IEC 63-90 B5 B14, NEMA 56, 140T-280 |
|
fasa |
Fasa Tunggal atau Tiga Fasa |
| Voltan | 110V115V 120V 220V 230V 240V 380V 400V 415V 440V 480V 575V 600V 660v, dsb. |
| tiang | 2. 4, 6, 8 tiang |
| Kelas Perlindungan | IP55, IP56, IP65, IP67, IP69K |
| Jenis Kepungan | IC411. IC410, IC416, TENV, TEFC |
| Jenis Pemasangan | B14, B3, B5, B35. B34 |
| Suhu Ambien | -15~+40 darjah |
| Ketinggian | Kurang daripada atau sama dengan 1000M |
| bahan | Keluli tahan karat 304 316 |
| Pilihan Bebibir | IEC:63B5,63B14,71B5,71B14,80B5,80B14, 90B5,90B14,100B5,100B14, 112B5,112B14.132B5,160B5. 180B5 NEMA:56C,56HC,143TC,145TC,182TC,184TC,213TC,215TC,254TC,256TC,284TC,284TSC,286TC.286TSC |
Parameter Elektromotor IEC pada 380V 50Hz
|
Model |
kuasa kW |
Dinilai semasa A |
Kelajuan r/min |
Eff.% |
Faktor kuasa |
Nilai tork Nm |
Tst / TN |
Ist / IN |
Tmax / TN |
bising dB(A) |
|
Kelajuan segerak3000 r/min |
||||||||||
|
AS80M1-2 |
0.75 |
1.7 |
2840 |
80.7 |
0.82 |
2.5 |
2.3 |
7.0 |
2.3 |
62 |
|
AS80M2-2 |
1.1 |
2.4 |
2825 |
82.7 |
0.83 |
3.7 |
2.2 |
7.3 |
2.3 |
62 |
|
AS90S-2 |
1.5 |
3.2 |
2855 |
84.2 |
0.84 |
5.0 |
2.2 |
7.6 |
2.3 |
67 |
|
AS90L-2 |
2.2 |
4.6 |
2855 |
85.9 |
0.85 |
7.4 |
2.2 |
7.6 |
2.3 |
67 |
|
AS100L-2 |
3 |
6.0 |
2895 |
87.1 |
0.87 |
9.9 |
2.2 |
7.8 |
2.3 |
74 |
|
AS112M-2 |
4 |
7.8 |
2895 |
88.1 |
0.88 |
13.2 |
2.2 |
8.3 |
2.3 |
77 |
|
AS132S1-2 |
5.5 |
10.6 |
2920 |
89.2 |
0.88 |
18.0 |
2.0 |
8.3 |
2.3 |
79 |
|
AS132S2-2 |
7.5 |
14.4 |
2920 |
90.1 |
0.88 |
24.6 |
2.0 |
7.9 |
2.3 |
79 |
|
AS160M1-2 |
11 |
20.6 |
2960 |
91.2 |
0.89 |
35.5 |
2.0 |
8.1 |
2.3 |
81 |
|
AS160M2-2 |
15 |
27.9 |
2955 |
91.9 |
0.89 |
48.5 |
2.0 |
8.1 |
2.3 |
81 |
|
AS160L-2 |
18.5 |
34.2 |
2955 |
92.4 |
0.89 |
59.8 |
2.0 |
8.2 |
2.3 |
81 |
|
AS180M-2 |
22 |
40.5 |
2960 |
92.7 |
0.89 |
71.0 |
2.0 |
8.2 |
2.3 |
83 |
|
Model |
kuasa kW |
Dinilai semasa A |
Kelajuan r/min |
Eff.% |
Faktor kuasa |
Nilai tork Nm |
Tst / TN |
Ist / IN |
Tmax / TN |
bising dB(A) |
|
|
Kelajuan segerak1500 r/min |
|||||||||||
|
AS80M1-4 |
0.55 |
1.4 |
1425 |
80.6 |
0.75 |
3.7 |
2.3 |
6.5 |
2.3 |
56 |
|
|
AS80M2-4 |
0.75 |
1.8 |
1425 |
82.5 |
0.75 |
5.0 |
2.3 |
6.6 |
2.3 |
56 |
|
|
AS90S-4 |
1.1 |
2.6 |
1420 |
84.1 |
0.76 |
7.4 |
2.3 |
6.8 |
2.3 |
59 |
|
|
AS90L-4 |
1.5 |
3.5 |
1420 |
85.3 |
0.77 |
10.1 |
2.3 |
7.0 |
2.3 |
59 |
|
|
AS100L1-4 |
2.2 |
4.8 |
1445 |
86.7 |
0.81 |
14.5 |
2.3 |
7.6 |
2.3 |
64 |
|
|
AS100L2-4 |
3 |
6.3 |
1440 |
87.7 |
0.82 |
19.8 |
2.3 |
7.6 |
2.3 |
64 |
|
|
AS112M-4 |
4 |
8.4 |
1460 |
88.6 |
0.82 |
26.1 |
2.2 |
7.8 |
2.3 |
65 |
|
|
AS132S-4 |
5.5 |
11.2 |
1460 |
89.6 |
0.83 |
36.0. |
2.0 |
7.9 |
2.3 |
71 |
|
|
AS132M-4 |
7.5 |
15.0 |
1460 |
90.4 |
0.84 |
49.0 |
2.0 |
7.5 |
2.3 |
71 |
|
|
AS160M-4 |
11 |
21.5 |
1470 |
91.4 |
0.85 |
71.7 |
2.2 |
7.7 |
2.3 |
73 |
|
|
AS160L-4 |
15 |
28.8 |
1470 |
92.1 |
0.86 |
97.8 |
2.2 |
7.8 |
2.3 |
73 |
|
|
AS180M-4 |
18.5 |
35.3 |
1475 |
92.6 |
0.86 |
120 |
2.0 |
7.8 |
2.3 |
76 |
|
|
AS180L-4 |
22 |
41.8 |
1475 |
93.0 |
0.86 |
142 |
2.0 |
7.8 |
2.3 |
76 |
|
|
Kelajuan segerak1000 r/min |
|
||||||||||
|
AS80M1-6 |
0.37 |
1.1 |
910 |
73.5 |
0.70 |
3.9 |
1.9 |
5.5 |
2.0 |
54 |
|
|
AS80M2-6 |
0.55 |
1.5 |
905 |
77.2 |
0.71 |
5.8 |
1.9 |
5.8 |
2.1 |
54 |
|
|
AS90S-6 |
0.75 |
2.0 |
940 |
78.9 |
0.71 |
7.7 |
2.0 |
6.0 |
2.1 |
57 |
|
|
AS90L-6 |
1.1 |
2.8 |
935 |
81.0 |
0.73 |
11.3 |
2.0 |
6.0 |
2.1 |
57 |
|
|
AS100L-6 |
1.5 |
3.8 |
955 |
82.5 |
0.73 |
15.0 |
2.0 |
6.5 |
2.1 |
61 |
|
|
AS112M-6 |
2.2 |
5.4 |
960 |
84.3 |
0.74 |
21.7 |
2.0 |
6.6 |
2.1 |
65 |
|
|
AS132S-6 |
3 |
7.2 |
975 |
85.6 |
0.74 |
29.4 |
1.9 |
6.8 |
2.1 |
69 |
|
|
AS132M1-6 |
4 |
9.5 |
975 |
86.8 |
0.74 |
39.2 |
1.9 |
6.8 |
2.1 |
69 |
|
|
AS132M2-6 |
5.5 |
12.7 |
970 |
88.0 |
0.75 |
54.1 |
2.0 |
7.0 |
2.1 |
69 |
|
|
AS160M-6 |
7.5 |
16.2 |
970 |
89.1 |
0.79 |
73.5 |
2.0 |
7.0 |
2.1 |
70 |
|
|
AS160L-6 |
11 |
23.1 |
970 |
90.3 |
0.80 |
108 |
2.0 |
7.2 |
2.1 |
70 |
|
|
AS180L-6 |
15 |
30.9 |
975 |
91.2 |
0.81 |
147 |
2.0 |
7.3 |
2.1 |
73 |
|
Katalog Motor Keluli Tahan Karat

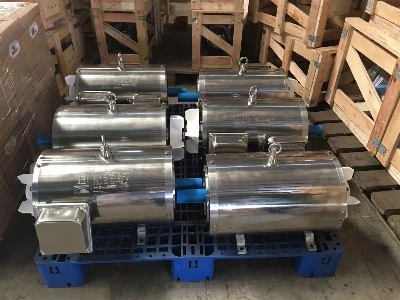

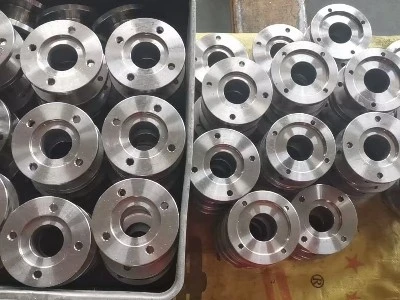

Foto Fizikal
Permohonan
